How to Create an Azure Active Directory Application & Enable API Permissions?

Step 1: Open Google and Search for the Microsoft Azure Portal.

screenshot1

Step 2: Click on the First Result that appears in the Google Search Results. You can Directly Click on https://azure.microsoft.com/en-us/get-started/azure-portal

screenshot2

Step 3:The Microsoft Azure Portal will appear in front of you. Click on the Sign In button at the Top-Right Corner of the Page.

screenshot3

Step 4: Now Enter your Microsoft Admin ID and click on the Next button.

screenshot4

Step 5: Provide your Password and click on the Sign In button.

screenshot5

Step 6: Then you will have to click on the User ID at the top-right corner of the Page and click on the View Account Link.

screenshot6

Step 7: Copy your Admin ID and Paste it at a Safe Location.

screenshot7

Step 8: Return back to the previous page and click on the Three Bars at the Top-Left Corner of your Page.

screenshot8

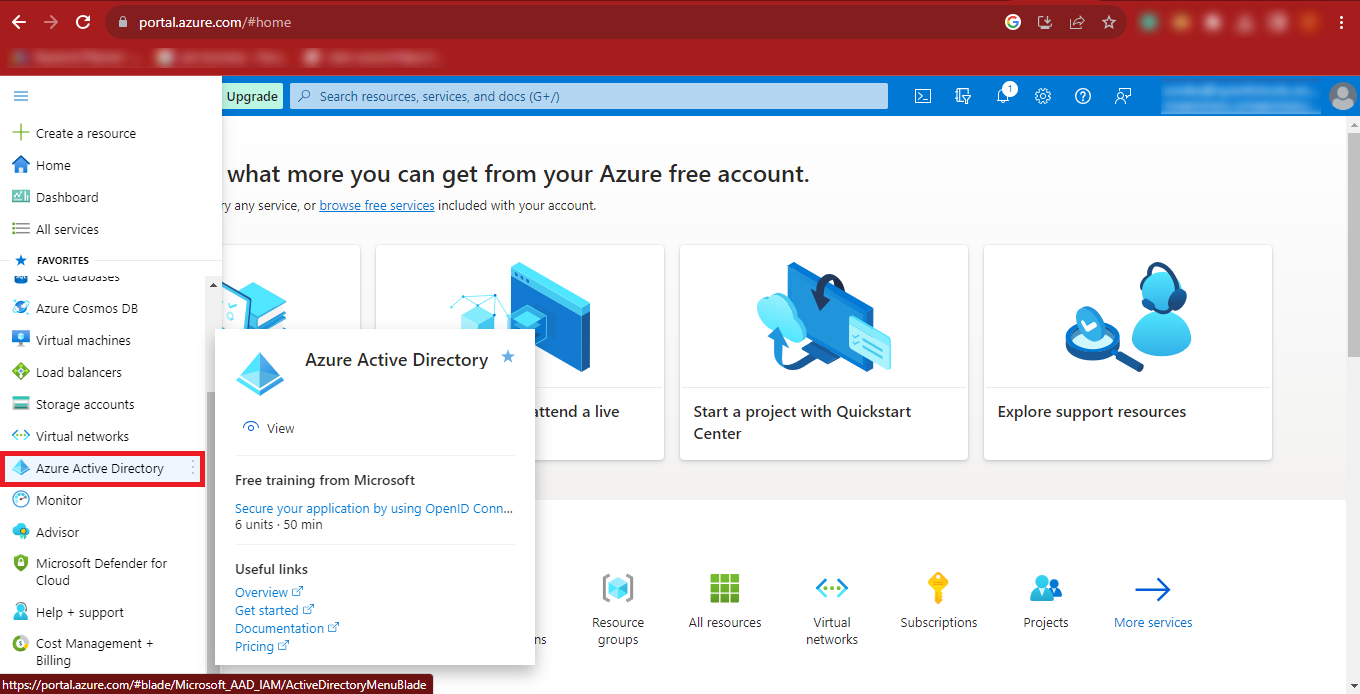

Step 9: Then click on the Azure Active Directory option.

screenshot9

Step 10: Now the Azure Portal will appear on your screen.

screenshot10

Step 11: Click on the Add option and once it expands, click on the App Registration Option.

screenshot11

Step 12: Now enter the desired name you want to give in the Name Box and Mark the Third Option i.e. “Accounts in any organizational directory (Any Azure AD directory - Multitenant) and personal Microsoft account (e.g. Skype, Xbox)” option. Click on the Register Button to Continue.

screenshot12

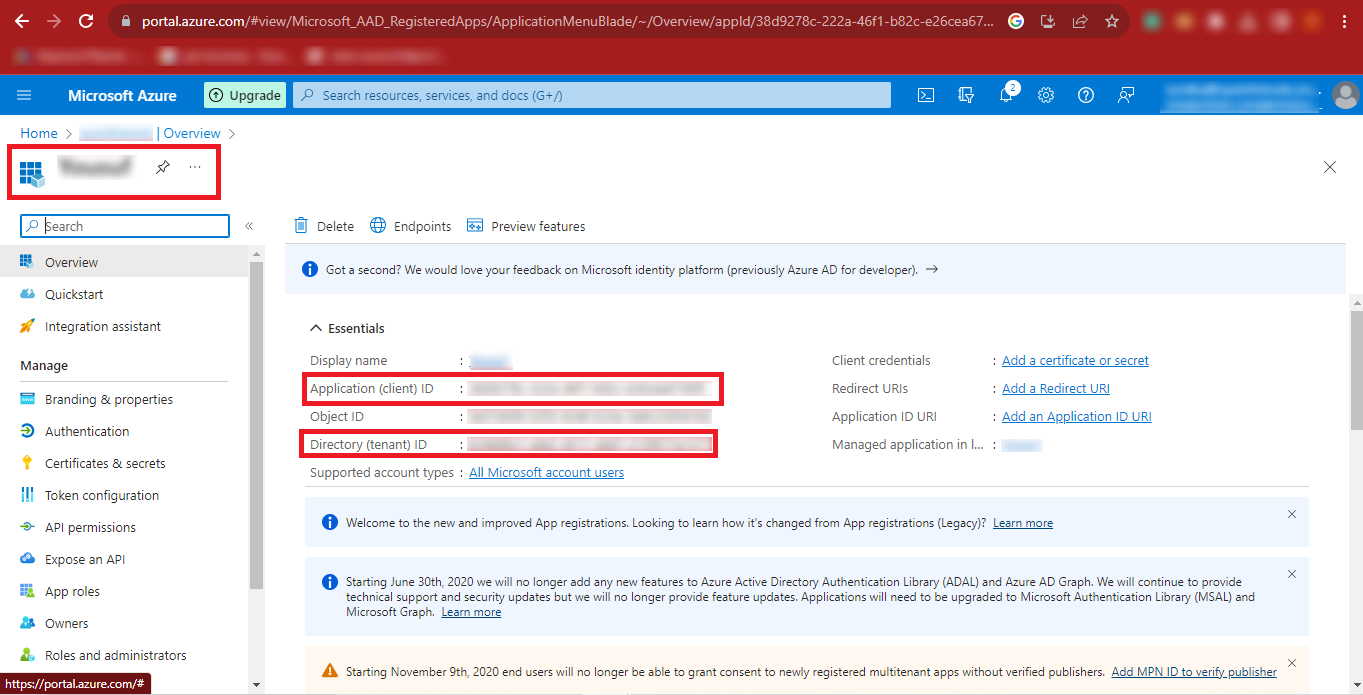

Step 13: Now you can see the Given Name, Application (client) ID, Directory (tenant) ID, and other details. Copy the Application (client) ID and Directory (tenant) ID and paste them at a safe place.

screenshot13

Step 14: Then click on the Certificates & Secrets option on the left side of the page and click on the New client secret option.

screenshot14

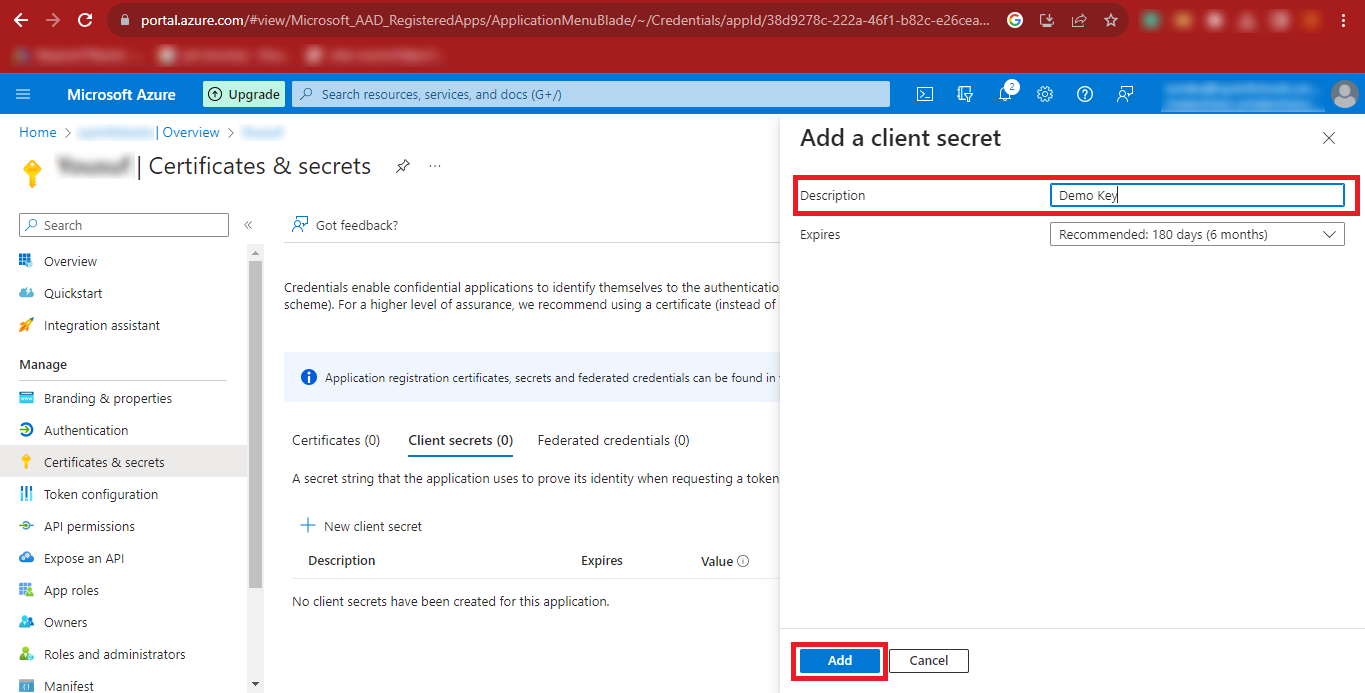

Step 15: In the Description Box enter any name you want to enter and click on the Add button.

screenshot15

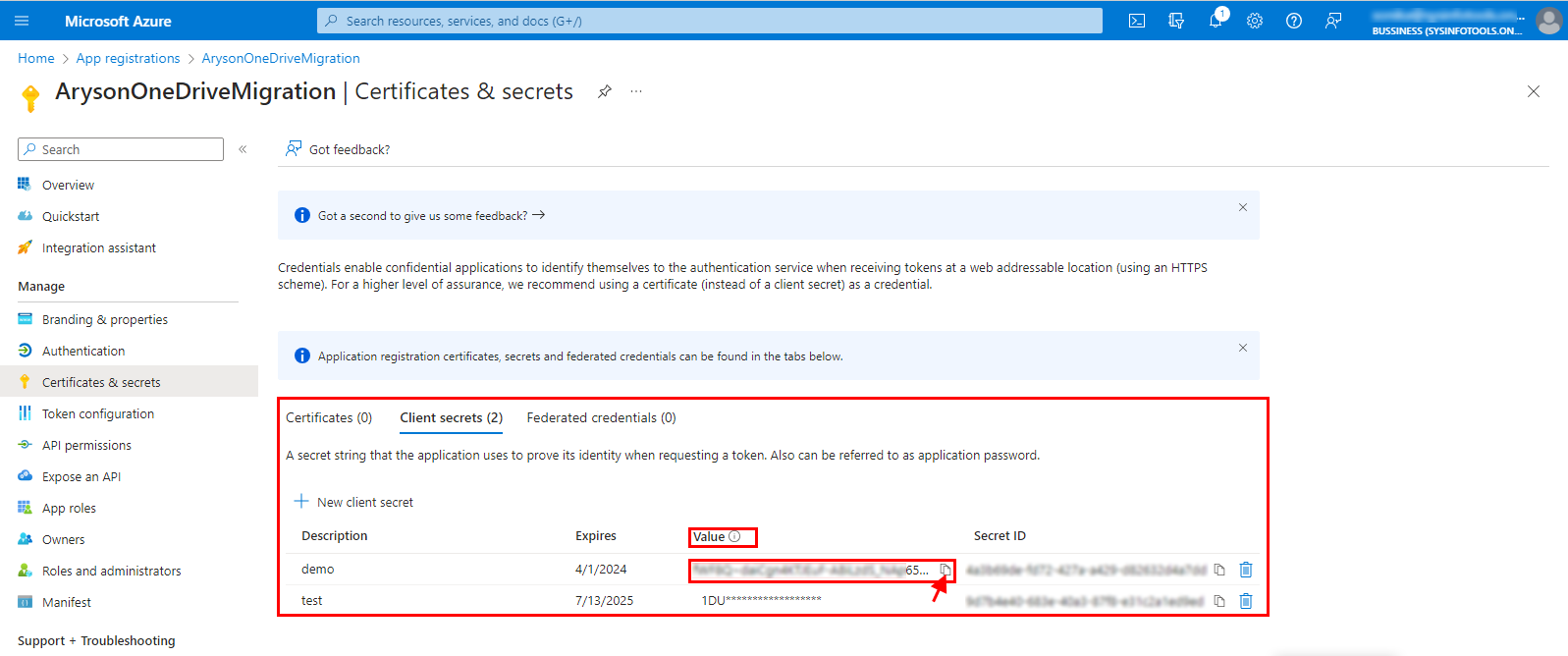

Step 16: After the above step, your Value will be created. Click on the Copy Icon and paste the Value at a Safe Place.

screenshot16

Step 17: Click on the API Permissions option and in the Configured Permissions Section click on Add a Permission.

screenshot17

Step 18: Now Click on Microsoft Graph in the Request API permissions Panel.

screenshot18

Step 19: Now you will have to give the Delegated Permissions and Application Permissions.

screenshot19

Step 20: Search the following Permissions as Given in the Table below and Add them.

screenshot20

Delegated Permissions

API/Permissions Name Description Admin consent required Status
DelegatedPermissionGrant.ReadWrite.All Manage all delegated permission grants Yes Granted for Project
Directory.Read.All Read directory data Yes Granted for Project
Directory.ReadWrite.All Read and write directory data Yes Granted for Project
Files.Read Read user files No Granted for Project
Files.Read.Selected Read files that the user selects (preview) No Granted for Project
Files.Read.Write Have full access to user files No Granted for Project
Files.ReadWrite.All Have full access to all files user can access No Granted for Project
Files.ReadWrite.AppFolder Have full access to the application's folder (preview) No Granted for Project
Files.ReadWrite.Selected Read and write files that the user selects (preview) No Granted for Project
Group.ReadWrite.All Read and write all groups Yes Granted for Project
Sites.Read.All Read items in all site collections No Granted for Project
User.Export.All Export user's data Yes Granted for Project
User.Manageldentities.All Manage user identities Yes Granted for Project
User.Read Sign in and read user profile No Granted for Project
User.Read.All Read all users' full profiles Yes Granted for Project
User.ReadBasic.All Read all users' basic profiles No Granted for Project
User.ReadWrite Read and write access to user profile No Granted for Project
User.ReadWrite.All Read and write all users' full profiles Yes Granted for Project

Application Permissions

API/Permissions Name Description Admin consent required Status
Files.ReadWrite.All Read and Write files in all site collections Yes Granted for Project
User.Export.All Application Export user's data Yes Granted for Project
User.Invite.All Invite guest users to the organization Yes Granted for Project
User.Manageldentities.All Manage all users' identities Yes Granted for Project
User.Read.All Read all users' full profiles Yes Granted for Project
User.ReadWrite.All Read and write all users' full profiles Yes Granted for Project

Step 21: Then Click on All APIs and go to the previous step for more permissions.

screenshot21

Step 22: Now click on the Office 365 Management APIs option.

screenshot22

Step 23: Then move to the APIs my organization uses tab.

screenshot23

Step 24: Search for the Office 365 Exchange Online option and click on the search result that appears.

screenshot24

Step 25: Now Click on the Application permissions option.

screenshot25

Give the Following Permissions in this Section as Given Below:-

API/Permissions Name Description Admin consent required Status
full_access_as_app Use Exchange Web Services with Full Access to All Mailboxes Yes Granted for Project
Mail.ReadWrite Read and write mail in all mailboxes Yes Granted for Project
Tasks.ReadWrite Read and write tasks in all mailboxes Yes Granted for Project

Step 26: After Adding the Permissions, you can see that the Status is Not Granted. So, click on the Grant admin consent for “YourAccount” option.

screenshot26

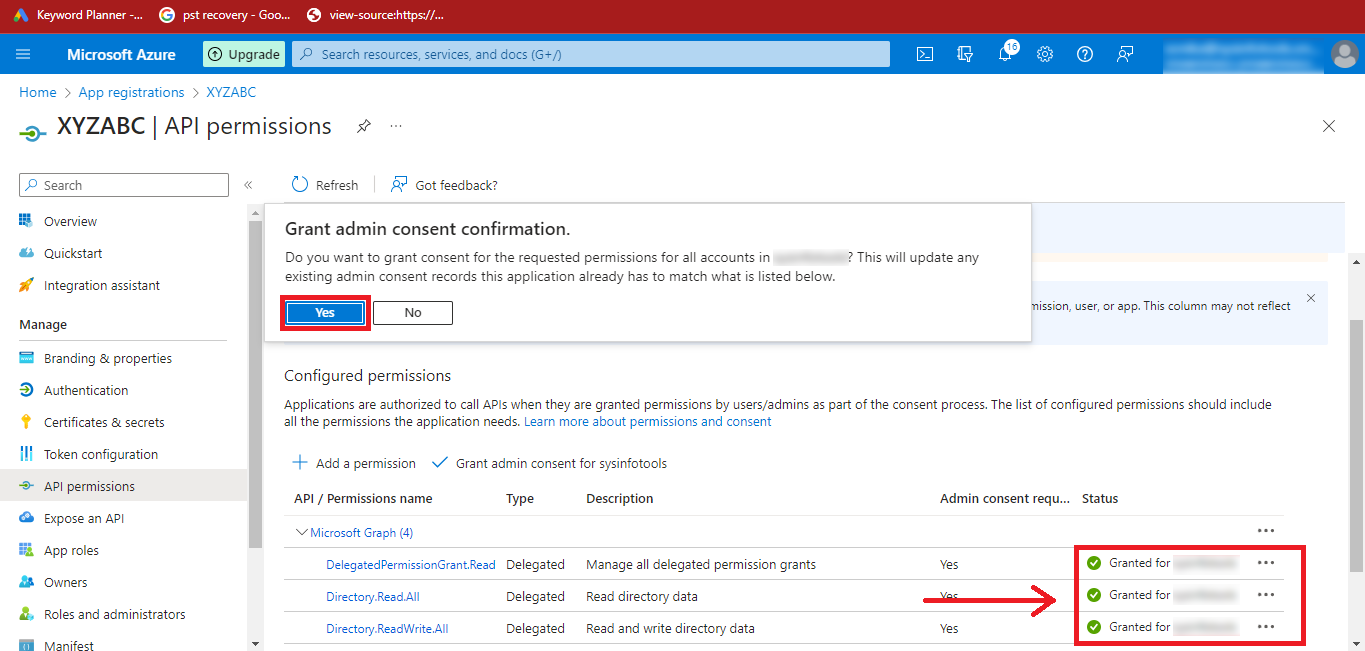

Step 27: Click on Yes and the Status will change to Granted.

screenshot27

Step 28: Finally, you have created Azure Active Directory Application and Enabled Necessary API Permissions.

Step 1: Open Google and Search for the Microsoft Azure Portal.

screenshot1

Step 2: Click on the First Result that appears in the Google Search Results. You can Directly Click on https://azure.microsoft.com/en-us/get-started/azure-portal

screenshot2

Step 3:The Microsoft Azure Portal will appear in front of you. Click on the Sign In button at the Top-Right Corner of the Page.

screenshot3

Step 4: Now Enter your Microsoft Admin ID and click on the Next button.

screenshot4

Step 5: Provide your Password and click on the Sign In button.

screenshot5

Step 6: Then you will have to click on the User ID at the top-right corner of the Page and click on the View Account Link.

screenshot6

Step 7: Copy your Admin ID and Paste it at a Safe Location.

screenshot7

Step 8: Return back to the previous page and click on the Three Bars at the Top-Left Corner of your Page.

screenshot8

Step 9: Then click on the Azure Active Directory option.

screenshot9

Step 10: Now the Azure Portal will appear on your screen.

screenshot10

Step 11: Click on the Add option and once it expands, click on the App Registration Option.

screenshot11

Step 12: Now enter the desired name you want to give in the Name Box and Mark the Third Option i.e. “Accounts in any organizational directory (Any Azure AD directory - Multitenant) and personal Microsoft account (e.g. Skype, Xbox)” option. Click on the Register Button to Continue.

screenshot12

Step 13: Now you can see the Given Name, Application (client) ID, Directory (tenant) ID, and other details. Copy the Application (client) ID and Directory (tenant) ID and paste them at a safe place.

screenshot13

Step 14: Then click on the Certificates & Secrets option on the left side of the page and click on the New client secret option.

screenshot14

Step 15: In the Description Box enter any name you want to enter and click on the Add button.

screenshot15

Step 16: After the above step, your Secret Value will be created. Click on the Copy Icon and paste the Secret Value at a Safe Place.

screenshot16

Step 17: Click on the API Permissions option and in the Configured Permissions Section click on Add a Permission.

screenshot17

Step 18: Now Click on Microsoft Graph in the Request API permissions Panel.

screenshot18

Step 19: Now you will have to give the Delegated Permissions and Application Permissions.

screenshot19

Step 20: Search the following Permissions as Given in the Table below and Add them.

screenshot20

Delegated Permissions

API/Permissions Name Description Admin consent required Status
Delegated.Permission.Grant.Read Manage all delegated permission grants Yes Granted for Project
Directory.Read.All Read directory data Yes Granted for Project
Directory.ReadWrite.All Read and write directory data Yes Granted for Project
Files.Read Read user files No Granted for Project
Files.Read.Selected Read files that the user selects (preview) No Granted for Project
Files.Read.Write Have full access to user files No Granted for Project
Files.ReadWrite.All Have full access to all files user can access No Granted for Project
Files.ReadWrite.AppFolder Have full access to the application's folder (preview) No Granted for Project
Files.ReadWrite.Selected Read and write files that the user selects (preview) No Granted for Project
Group.ReadWrite.All Read and write all groups Yes Granted for Project
Sites.Read.All Read items in all site collections No Granted for Project
User.Export.All Export user's data Yes Granted for Project
User.Manageldentities.All Manage user identities Yes Granted for Project
User.Read Sign in and read user profile No Granted for Project
User.Read.All Read all users' full profiles Yes Granted for Project
User.ReadBasic.All Read all users' basic profiles No Granted for Project
User.ReadWrite Read and write access to user profile No Granted for Project
User.ReadWrite.All Read and write all users' full profiles Yes Granted for Project

Application Permissions

API/Permissions Name Description Admin consent required Status
Files.ReadWrite.All Read and Write files in all site collections Yes Granted for Project
User.Export.All Application Export user's data Yes Granted for Project
User.Invite.All Invite guest users to the organization Yes Granted for Project
User.Manageldentities.All Manage all users' identities Yes Granted for Project
User.Read.All Read all users' full profiles Yes Granted for Project
User.ReadWrite.All Read and write all users' full profiles Yes Granted for Project

Step 21: After Adding the Permissions, you can see that the Status is Not Granted. So, click on the Grant admin consent for “YourAccount” option.

screenshot21

Step 22: Click on Yes and the Status will change to Granted.

screenshot22

Step 23: Finally, you have created Azure Active Directory Application and Enabled Necessary API Permissions.
